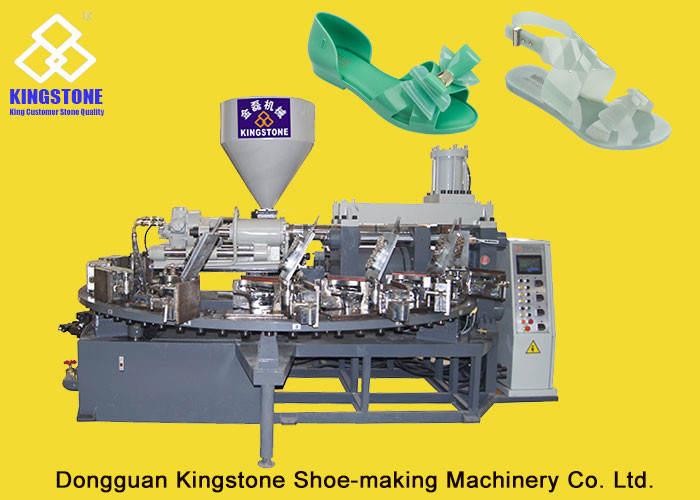

Safe Design Plastic Shoes Making Machine With Servo Motor System
JL-128
Description:
Kingstone Shoe-making Machinery is a machine manufacturer with 16
years production experiences, we are strive to make high quality
shoes machine for different kinds of shoes. The machine can produce
one color plastic shoes, it can sell directly after take the shoes
from machine, very beautiful.
| Specifications |
| Machine model | JL-128 |
| Mould-clamping Unit |
| Work station | | 12,16,20 |
| Clamping force | TON | 120-150 |
| Opening stroke | MM | 210 |
| Mould dimension | MM | 600*280 |
| Height of injection nozzle | MM | 280 |
| Injection Unit |
| Injector | SET | 1 |
| Screw diameter | MM | 65/70/75 |
| Screw L/D ratio | L/D | 20 |
| Max.injection volume | cm3 | 650-1000 |
| Injection speed | Cm/s | 10 |
| Screw rotation speed | R.P.M | 0-200 |
| Electricity Consumption | Normal | Servo |
| Heating power of injector | KW | 7 | 7 |
| Hydraulic unit motor | KW | 18.5 | 15.7+7.5 |
| Total power | KW | 25.5 | 30.2 |
| Temperature control | Section | 4 | 4 |
| Power consumption per hour | Kw/h | 15-20 | 7-10 |
| Dimension and Weight | 20 Stations |
| Machine dimension | (L*W*H)MM | 4600*3700*2500 |
| Machine weight | KGS | 6500 |
| *Note:Above data only for reference. |
Features:
1. Pressure switch assures the locking strength by mold lock system
for far better product.
2. The emergent safety button is to safeguard the operational
safety.
3. The well-interconnected oil circuit by electric control can
reduce waiting time, quicken production rate, and promote
productivity.
4. As the feeding is controlled by back pressure, it is capable of
adjusting foaming density of raw material.
Why Choose us?
1. 30 years experiences.
2. Supply whole production line for making shoes (Include Machine,
Mould, Material).
3. Give ideas on Factory Building.
4. Provide good after-sales service every year.
5. Test more spare parts and choose the best one.
6. Use good engineer to make the machine.
Packing
Professional export package, or packing it with your requriements.
Shipping
Choose the right shipping way for your country.
